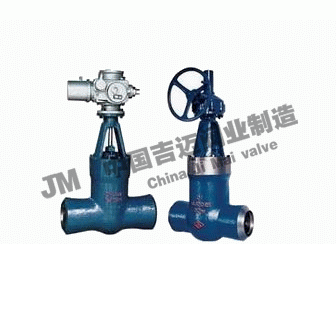

Z960Y高壓焊接閘閥

● 制造與驗收技術條件按日本火力發電用閥門標準E101和JB/T3595-93的規定；

● 結構長度按E101的規定或按用戶提供尺寸

● 焊接坡口接電力工業管理標準78DG的規定或按用戶提供尺寸。

● The manufalture and aueptanle specigication shan be based on the japanese standard E101 applied for the thermal powerand JB/T3595-93

● The length shall bein line with E101 or by user’s speeification.

● Welding groove shan be in auordanle with power industrh spe-cification 78DG or hg user’ specification

● The size in inclose is old production’s size

產品型號 Product type公稱壓力PN(MPa)Nominal pressure

試驗壓力(MPa)Test pressure

工作壓力(MPa)Working pressure

工作溫度(℃)Working temperature

適用介質Appicable medium

強度試驗Sheel test

密封試驗/上密封實驗Seal test

Z960Y-250

25

37.5

27.5

-

≤425

水、蒸汽、Water,steam

Z960Y-320

32

48.0

36.0

-

≤425

Z960Y-P54100

-

30.0

22.0

P5410

≤540

蒸汽 Steam

Z960Y-P54170

-

48.0

36.0

P5417

≤540

主要零件材料Matecrial for main parts

零件名稱Part name

材料牌號Material designation

閥體Body

WCB

WC6

WC9

閥板Disc

WCB

WC6

WC9

閥蓋Bonnet

25

12Cr1Mo1VA

閥桿Stem

1Cr17Ni2

20Cr1Mo1VA

閥座Seat

25

12Cr1Mo1VA

密封環Sealing ring

S軟鋼(增強柔性石墨)S soft steel (flexible graphite)

S軟鋼S soft steel

F軟鋼F Soft steel

填料Packing

增強柔性石墨Fexible graphite

支架Yoke

WCB

WCB或WC6

閥桿螺母Stem nut

45(ZCuZn25A16Fe3Mn3)

四開環Four piece ring

1Cr13

20Cr1MoVA

公稱通徑DNNominal diameter

主要外形尺寸和連接尺寸(mm)Main external and connecting dimensions

電動裝置Electric dewice

重量(kg)Weight

d

L

H

L1

L2

Z60Y-250

100

84

406

1164

437

277

DZW45

234

125

100

483

1402

437

277

DZW60

343

175

158

711

1650

554

309

DZW180

638

225

200

864

1650

554

309

DZW180

654

300

280

1067

2106

764

398

DZW350

1973

Z60Y-320

100

96

533

1236

437

277

DZW60

291

125

118

610

1302

437

277

DZW60

315

150

148

762

1403

526

283

DZW90

672

175

148

762

1650

554

309

DZW180

684

225

222

1041

1650

554

309

DZW180

696

Z60Y-P54100V

175

148

762

1650

554

309

DZW180

683

225

222

1041

1650

554

309

DZW180

704

250

222

1041

1795

554

309

DZW180

1214

300

294

1245

2080

554

309

DZW250

2125

Z60Y-P54170V

125

98

630

1230

437

277

DZW60

312

225

186

1060

1680

554

309

DZW180

1401

300

278

1397

2265

764

DZW500

2834

325

310

1448

2265

690

398

DZW500

2632

350

338

1550

2536

715

DZWC-4

5591
